488 - steering column (chassis) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
GA16DE +SR20DE +CD20 +CD20T	08.1995 - 01.1997	チルト無し

Open full screen picture Up to the top

081268301G 0891110637 089152381A 48020A - bolt 48025A - bolt 48035A - seal,O ring 48073C - washer, plain 48080 - joint assembly, steering lower 48342N - cover, column hole 48805 - column assembly, steering 48820 - shaft assembly, steering column upper 48820C - washer, plain 48820E - ring, snap 48860 - tube assembly, jacket upper 48967 - cover, joint upper 48967E - clamp, cover 48967EA - clamp, cover 48976 - nut, steering adjust

---

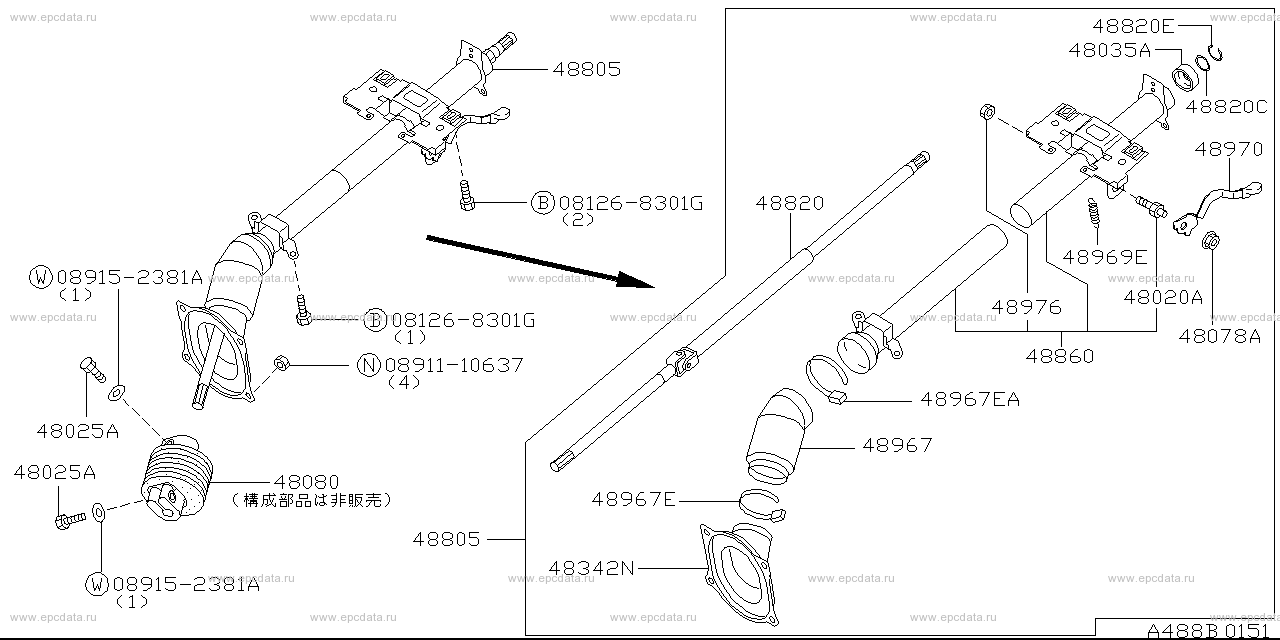

Applies for models	Manufacture period	Spec
GA16DE +SR20DE +CD20 +CD20T	08.1995 - 01.1997	チルト付き

Open full screen picture Up to the top

081268301G 0891110637 089152381A 48020A - bolt 48025A - bolt 48035A - seal,O ring 48078A - nut 48080 - joint assembly, steering lower 48342N - cover, column hole 48805 - column assembly, steering 48820 - shaft assembly, steering column upper 48820C - washer, plain 48820E - ring, snap 48860 - tube assembly, jacket upper 48967 - cover, joint upper 48967E - clamp, cover 48967EA - clamp, cover 48969E - spring 48970 - lever assembly, adjust steering column 48976 - nut, steering adjust

---

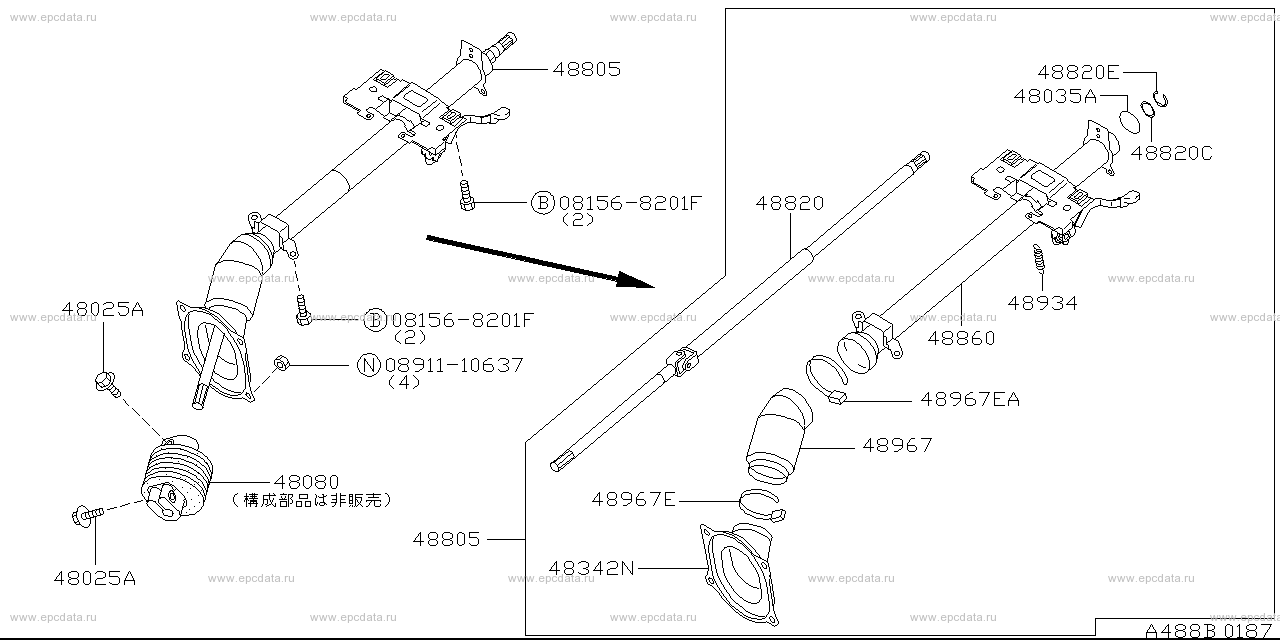

Applies for models	Manufacture period	Spec
SR20DE +CD20ET	01.1997 - 01.1998	チルト付き
SR20DE +CD20ET	01.1998 - ...	チルト付き

Open full screen picture Up to the top

081568201F 0891110637 48025A - bolt 48035A - seal,O ring 48080 - joint assembly, steering lower 48342N - cover, column hole 48805 - column assembly, steering 48820 - shaft assembly, steering column upper 48820C - washer, plain 48820E - ring, snap 48860 - tube assembly, jacket upper 48934 - spring, steering column 48967 - cover, joint upper 48967E - clamp, cover 48967EA - clamp, cover

Vanette Serena KVC23
